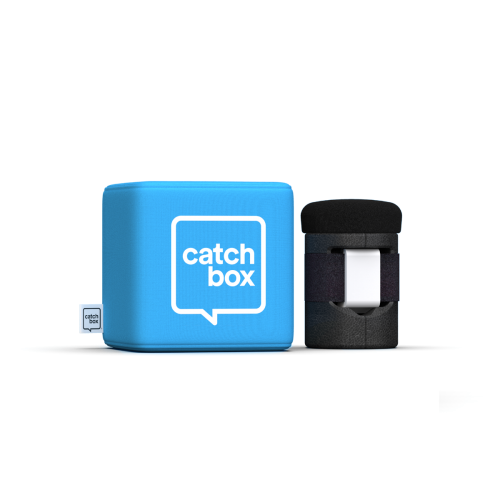

Catchbox Pro
The Audience Engagement Solution for For Larger, More Demanding Events
The Catchbox Pro is a module, converting existing beltpack transmitters, or lavalier microphones, into throwable microphones. This means it is easy to integrate with any event that already has a working wireless microphone setup. Users simply connect their existing beltpack transmitter into the Catchbox Pro’s built in mic and Automute electronics.
- Audience size up to 2000
- Range up to 90m / 300ft
- >20h Battery life
- Requires own transmitter
(See compatibility list)
| specification | Value |
|---|---|
| Weight without 3rd party transmitter | 320g / 11.3oz |
| Dimension | 18 x 18 x 18 cm / 7 x 7 x 7 in |
| Battery Type (of Muting Circuit) | 1 x AA (LR6) alkaline |
| Battery Life (of Muting Circuit) | >20 hours (with alkaline batteries) |
| Microphone Element | Electret condenser |
| Microphone Polar Pattern | Omni Directional |
| Additional System Latency | 0 ms |
| Adapter Cables provided | 4 pin mini XLR (Shure) 3.5mm jack (Sennheiser) 3 pin mini XLR (AKG) |
| Compatible 3rd Party Transmitters pre-tested for compliance |
See compatibility list |
No. However, if you would like to record audio with the Catchbox, simply connect the receiver to a recorder, for example to a laptop.
No. Catchbox automatically cuts all the unwanted sounds when it is in motion. This is achieved using its patent pending automute technology, which is included in all models of the Catchbox.
The outer cover is easy to replace and customers can purchase individual replacement covers. These are sold through our webstore
You need to use a third party transmitter with the Catchbox Pro. We have tested for compliance the following transmitters: Shure ULX-D1 QLX-D1 UR1M Sennheiser SK 500 (Evolution Wireless) SK 300 (Evolution Wireless) SK 100 (Evolution Wireless) AKG DPT 700 PT 470 PT 420.
You could possibly use other transmitters as long as the belt-pack physically fits inside the Catchbox Pro and can be connected with any of the adapter cables that we provide with your unit: – 3 pin mini XLR (AKG) – 4 pin mini XLR (Shure) – 3.5 mm jack (Sennheiser).
If you are using a beltpack from another brand (even if it uses one of these connectors) please contact us and we will be happy to advise on compatibility.
The Pro Module versions limitations depend on the beltpack transmitters of your choosing, which can operate in other frequency bands.. In most cases you may be able to have tens of units in one room.
The reason is that the Catchbox Lite comes with its own transmitter and receiver that work in the 2.4 GHz band. The Catchbox Pro doesn’t come with a transmitter, but instead allows you to connect your own beltpack. So there are more electronic components included with the Catchbox Lite.
The Catchbox Pro DOES NOT come with a transmitter or receiver so you need to use your own equipment. You can insert your existing beltpack into the Catchbox and use any of the 3 connectors that we provide (3.5 mm jack, 3 pin mini XLR and 4 pin mini XLR). It is suitable for larger events and its range will depend on your own system.
- Catchbox Outer Cover
- Catchbox Pro Module
- RCA to 3.5mm (1/8in) jack connector cable
- RCA to 3 pin mini XLR cable
- RCA to 4 pin mini XLR cable
- User Manual
- Does not include: 3rd Party Transmitter
Catchbox Lite
The Audience Engagement Solution for Less Demanding Events
Catchbox Lite is a complete wireless microphone system that works globally without a license and plugs into any audio system. It won’t interfere with other wireless mics and does not require active audio management. Simply turn it on, and throw it in. Due to the frequency being used, the system does not work in larger events of more than 100 people which require more advanced wireless microphones (See Catchbox Pro).
- Audience size up to 100
- Range up to 30m / 100ft
- 10h Battery life
- Frequency: 2.4GHz
(Globally license free)
| Specification | Value |
|---|---|
| Max Wireless Range: | 30m / 100ft (Line of Sight) |
| Frequency Band | 2.4GHz ISM band (2.400-2.485 GHz) |
| Recommended Audience Size | 1-100 people |
| Audio Frequency Response | 50-10000Hz |
| Signal Type | Digital |
| Automatic Frequency Hopping | Yes |
| Antenna Diversity | Yes |
| Max # of systems in one space | 4 |
| Additional System Latency | 20ms |
 Receiver
| Specification | Value |
|---|---|
| Weight | 270g / 9.5oz |
| Dimensions (without antennas) | 13 x 12.5 x 3.5 cm / 5.1 x 5 x 1.4 in |
| Power supply | 5 VDC |
| Audio output | 6.3mm / 1/4in jack |
 Transmitter (with Cover)
| Specification | Value |
|---|---|
| Weight (including batteries) | 380g / 13.5oz |
| Dimensions | 18 x 18 x 18 cm / 7 x 7 x 7 in |
| Microphone Element | Electret condenser |
| Microphone Polar Pattern | Omni Directional |
| Battery Type | Rechargeable, Li-on |
| Radio Power Output | 10mW |
No. However, if you would like to record audio with the Catchbox, simply connect the receiver to a recorder, for example to a laptop.
No. Catchbox automatically cuts all the unwanted sounds when it is in motion. This is achieved using its patent pending automute technology, which is included in all models of the Catchbox.
The outer cover is easy to replace and customers can purchase individual replacement covers. These are sold through our webstore
The reason is that the Catchbox Lite comes with its own transmitter and receiver that work in the 2.4 GHz band. The Catchbox Pro doesn’t come with a transmitter, but instead allows you to connect your own beltpack. So there are more electronic components included with the Catchbox Lite.
The Catchbox Pro DOES NOT come with a transmitter or receiver so you need to use your own equipment. You can insert your existing beltpack into the Catchbox and use any of the 3 connectors that we provide (3.5 mm jack, 3 pin mini XLR and 4 pin mini XLR). It is suitable for larger events and its range will depend on your own system.
- Catchbox Outer Cover
- Catchbox Lite Transmitter
- Catchbox Lite Receiver
- 2x External Antennas
- Power Cable + country adapters
- USB -C cable
- 6.3mm audio jack cable
- 6.3 to 3.5mm jack adapter piece
- 6.3mm to RCA adapter piece
- User Manual
Catchbox Plus
The Audience Engagement Solution with Large Coverage
Catchbox Plus is a complete wireless microphone system with increased coverage and rechargeable Li-ion battery for both large and small events. Add Wireless Charger for easier charging. Catchbox Plus allows you to connect two Catchbox transmitters to the same receiver simultaneously.
- Audience size up to 1000
- Range up to 100m / 328ft
- 14h Battery life
- Frequency: DECT 6.0 (USA), and DECT (EU and other regions)
(Globally license free)
| General specifications | |
|---|---|
| Max Wireless Range: | Up to 100m / 328 ft (Line of Sight) |
| Frequency Band | DECT / DECT 6.0 (1.7-1.9 GHz depending on region) |
| Recommended Audience Size | 1-1000 people |
| Audio Frequency Response | 50-12000Hz |
| Signal Type | Digital |
| Antenna Diversity | Yes |
| Max # of systems in one space | Up to 8 |
| System Latency | 14 ms |
| Frequency Band | DECT / DECT 6.0 (1.7-1.9 GHz depending on region) |
| Receiver | |
| Weight | 200g / 7oz |
| Dimensions | 130 x 130 x 40 mm / 5.11 x 5.11 x 1.57 in |
| Power Supply | 5V 1A Micro USB |
| Audio Output | 6.3mm / 1/4 in jack (balanced) |
| Transmitter (with Cover) | |
| Weight | 390g / 13.75 oz |
| Dimensions | 180 x 180 x 180 mm / 7 x 7 x 7 in |
| Microphone Element | Electret condenser |
| Microphone Polar Pattern | Omni Directional |
| Battery Type | Lithium-ion, rechargeable |
| Battery Life | 14h |
| Charging time | 3h via USB cable, 6h wirelessly |
| Radio Power Output | EU: 200 mW; USA, JPN: 100 mW |
| Wireless Charger Compatible | Yes (Catchbox proprietary protocol) |
| Wireless Charger | |
| Weight | 560g / 19.75 oz |
| Dimensions | 190 x 190 x 26 mm / 7.48 x 7.48 x 1.02 in |
| Charging protocol | Catchbox proprietary |
| Power Supply | 5V 1A Micro USB |
No. However, if you would like to record audio with the Catchbox, simply connect the receiver to a recorder, for example to a laptop.
No. Catchbox automatically cuts all the unwanted sounds when it is in motion. This is achieved using its patent pending automute technology, which is included in all models of the Catchbox.
The outer cover is easy to replace and customers can purchase individual replacement covers. These are sold through our webstore
Catchbox can be used with most audio systems. The Plus version of the device comes with a receiver and accompanying cable and adapters that allow it to connect to audio mixers, laptops, and even speakers.
You can connect the Catchbox Plus Receiver to the audio inputs of devices such as audio mixers, stereo systems and laptops. First, connect the 6.3 mm audio cable to the receiver’s audio output port. Afterwards, use the different adapter pieces provided with the product to connect the audio cable to the audio input of your device.
The most common inputs are: 1) RCA (common in stereos) 2) 3.5 mm (0.14 in) (common in computers) 3) 6.3 mm (1/4 in) (common in audio mixers).
Catchbox Plus receiver and transmitter are already paired before delivery.
However, if you need to pair it, remove the capsule from the cover and press both volume buttons at once on the capsule. One example where you would need to perform the pairing is f you have 3 Catchbox Plus transmitters, and you need to switch the third one in place of one of the paired ones. Here’s how you can do it: 1) switch off the transmitter you won’t use anymore, 2) take the Catchbox you need to pair with the receiver, remove the capsule from the cover, and press both volume buttons at once on the capsule. Once the green indicator lights up on the receiver, this means the Catchbox is paired with the receiver.
Catchbox Plus receiver and transmitter are already paired before delivery.
However, if you need to pair it, remove the capsule from the cover and press both volume buttons at once on the capsule. One example where you would need to perform the pairing is f you have 3 Catchbox Plus transmitters, and you need to switch the third one in place of one of the paired ones. Here’s how you can do it: 1) switch off the transmitter you won’t use anymore, 2) take the Catchbox you need to pair with the receiver, remove the capsule from the cover, and press both volume buttons at once on the capsule. Once the green indicator lights up on the receiver, this means the Catchbox is paired with the receiver.
For products without wireless charger included:
- Catchbox Plus Transmitter Capsule (1 or 2)
- Catchbox Plus Receiver
- Power Cable
- 6.3mm Audio Cable
- User Manual
For products with wireless charger included:
- Wireless Charger (1 or 2)
- Power Cable for Wireless Charger (1 or 2)
